Yesterday and Today |
|
|
|
|
|
First Induction Furnace at EMHA'78 Argentine Industrial Machine Tools Fair 10 kg, 12 kW, 10.000 Hz Buenos Aires 1978 |
Current Induction Furnace In today operation during a casting 1 Ton, 400 kW, 1000 Hz Almafuerte (Córdoba) 2001 |
|
Steel Framework Induction Furnaces |
|
|
|
|
|
Two 1 Ton Steel Shell Furnaces during mounting process
|
|
|
|
|
| Steel Frame 500 kg Induction Furnaces | |
|
Before Coil check
|
During erection at the Customer Plant
|
|
|
|
|
Coil for 500 kg Induction Furnace before isolation |
Detail of Water Cooled Cables connection
|
|
Typical Induction Power Supply |
|
|
|
|
|
Part of main Instrument and Control Board
|

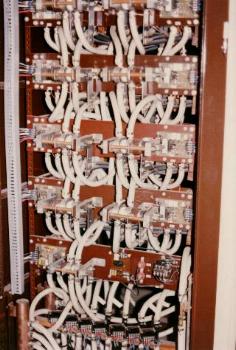

Plug-in Control Boards Panel
|
|
|
|
|
Modular Inverter Section
|
Smoothing DC Reactor
|
|
Hydraulic and Cooling Equipment |
|
|
|
|
|
Checking Hydraulic operation
|
Hydraulic Control Desk
|
|
|
|
|
Typical Air-Water Heat Exchanger
|
Testing Thermal Transfer in Heat Exchangers
|
|
|
|
|

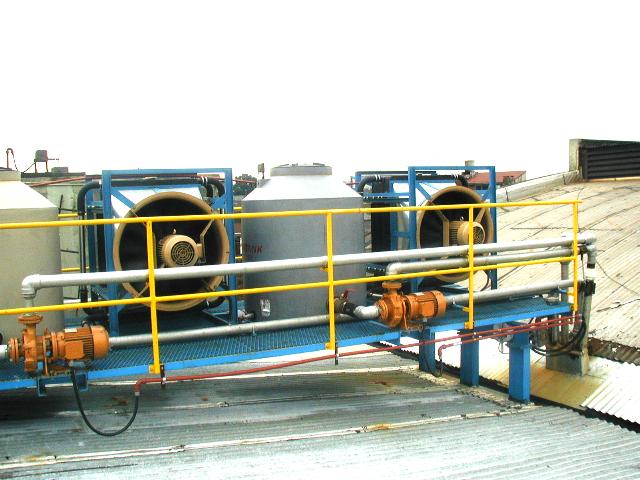

Air-Water Heat Exchangers Cooling Plant for 400 kW Induction Furnace |
|
|
|
|
|
Air-Water Heat Exchanger - New Version For applying to a 750 kW Induction Furnace During assembly |
|
|
Some Arc Furnaces at Present EME 10 Ton, 2.5 MVA Arc Furnace |
|
|
|
|
|

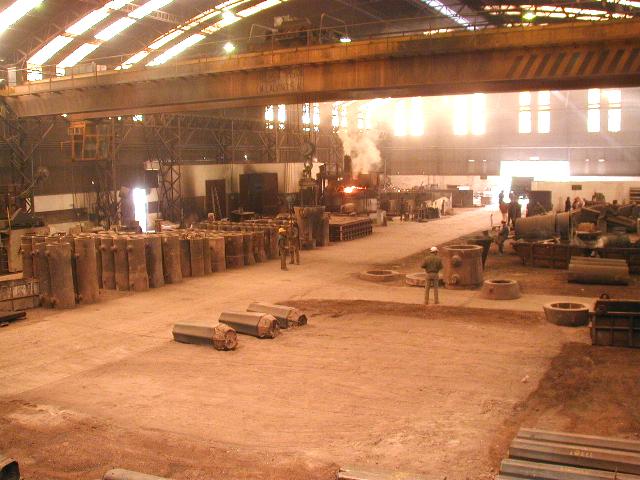

Steel Workshop at Burzaco (Bs. As.) 2003 with 10 Ton, 2500 kVA Arc Furnace built by E.M.E. S.A., Rosario, Argentina |
|
|
|
|
|
Arc Furnace during pouring Burzaco (Bs. As.) |
Charging 10 Ton Arc Furnace
|
|
|
|
|

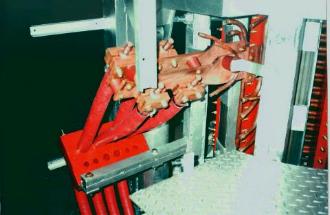

Electrode Water Cooled Busbars with Symmetrical Arrangement in order to avoid Electrode Arc Mismatch. Transformer Secondary Delta is closed at Electrode Clamps |
|
|
|
|
|
Hydraulic Operation Desk and Electric Metering and Control Board |
|
|
|
|
|
Automatic Electrode Regulator showing Plug-in Electronic Control Boards allowing quick replacement when necessary |

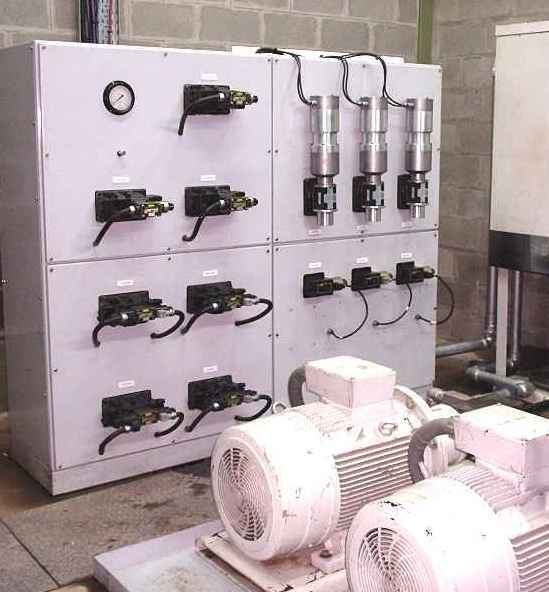

Electrohydraulic Operation Valves Panel showing Electronic Controlled Valves at rear |
|
10 Ton Arc Furnace, built by EME S.A. in 1975, in operation today during smooth cold melting start |
|
|
25 Ton, 6 MVA Arc Furnace built by TELSUR S.R.L., Burzaco, Buenos Aires Control Equipment and Low Voltage Busbars by own original project | |
|
|
|
|
25 Ton, 6 MVA Arc Furnace Burzaco (Bs. As.) 2006 |
|
|
|
|
|
25 Ton, 6 MVA Arc Furnace during melting operation |
|
|
|
|
|
25 Ton, 6 MVA Arc Furnace waiting for a 2nd charge |
|
|
|
|
|
Hydraulic Valves Control Panel showing the
Electrohydraulic - Electronic Electrode Control Valves at right |

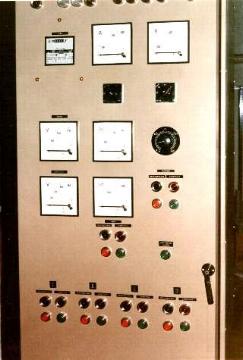

25 Ton Arc Furnace Electric Metering and Control Board |
|
Tagliaferri 3 Ton, 900 kVA Arc Furnace | |
|
|
|
|
3 Ton, 900 kVA Tagliaferri Arc Furnace new 1960, almost not used until present Successfully Reinstalled with all his Original Equipment and little Basic Modifications Escobar (Bs. As) 2003 |
|
|
|
|
|

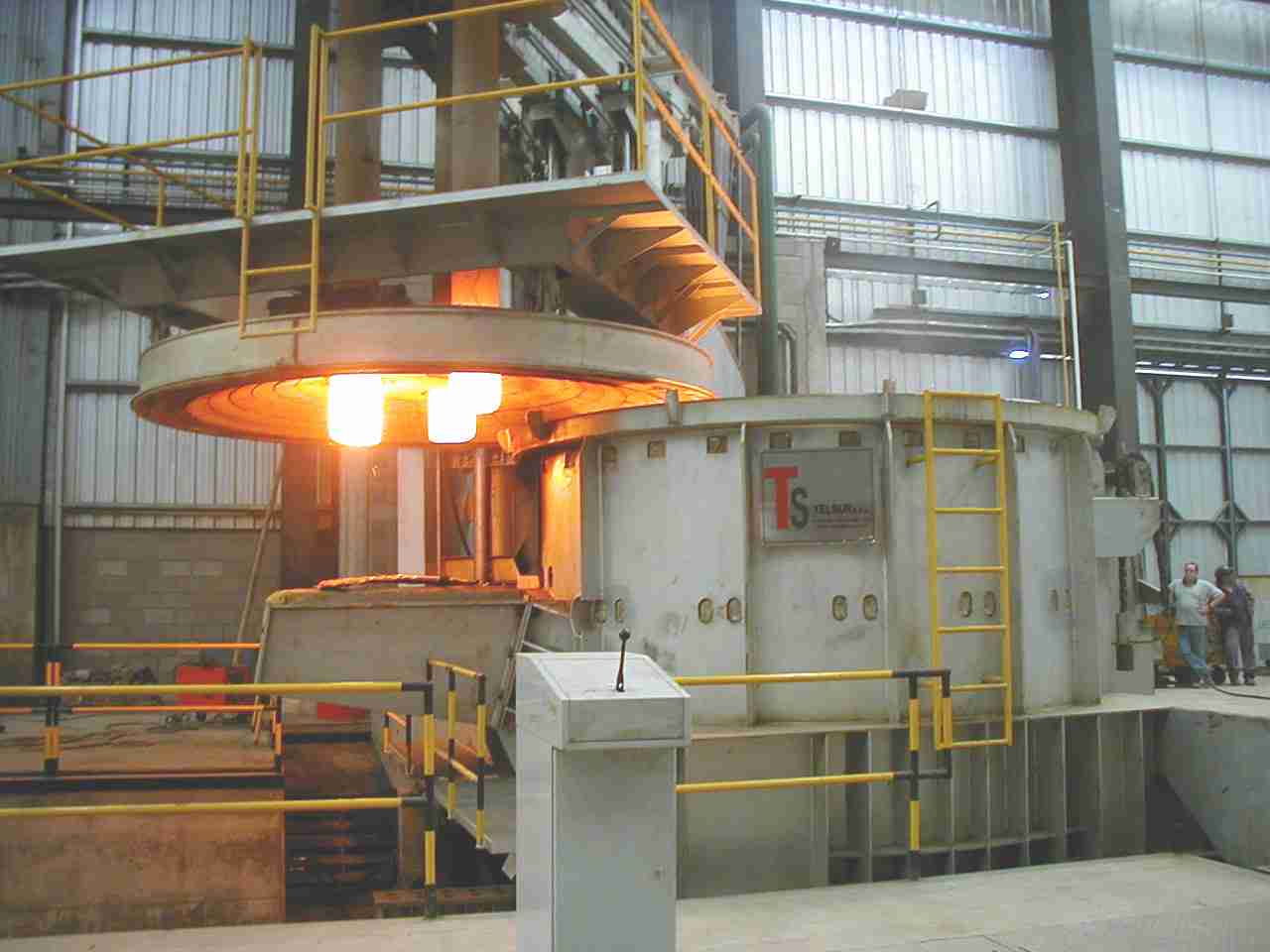

3 Ton Arc Furnace with Roof in Open Position
|
Tagliaferri Arc Furnace showing the Modified Electrode Busbars for Symmetrical Current Improving |
|
|
|
|
Tagliaferri Hydraulic and Electric Control Board
|
Secondary Transformer Busbars mounted in order to allow Symmetrical Electrode Currents |
|
Earlier Photos (1975...1980) at Equipos Modulares Electrónicos S.A. |
|
|
|
|
|

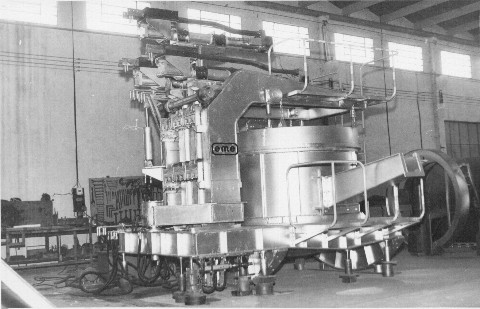

6 Ton shifting Roof Arc Furnace There could be seen the Open Delta Symmetrical Electrode Bus Bar arrangement where Transformer Secondary Delta is to be closed at Electrode Clamps |
|
|
|
|
|
Mounting Hall of Arc Furnaces
|
Arc Furnaces Shells during mounting stage
|
|
|
|
|
Testing a Prototype Induction Furnace Equipment
|
Inverter Section of first Induction Power Supply 12 kW, 10.000 Hz |
|
|
|
|
New "D" Tube Induction Furnace Coil for 1 Ton "JUNKER" furnace after winding process |
|
|
Miscelaneous |
|
|
|
|
|
At left, Control Boards for Glass Conditioning Equipment |
Automatic Electrode Regulator for Ferroalloy Electric Smelting Furnace Salvador de Bahía (Brazil) 1975 |
|
|
|
|
Direct Current Servomotors Manufactured for Electrode Regulation Equipment of Ferroalloy Electric Smelting Furnaces 10 kW, 1500 rpm, 220 V |
Outdoor Oil Inmersed Metering Potential Transformer 33000/V3 V/110/V3 V, 60 VA, Cl 0.5 |
